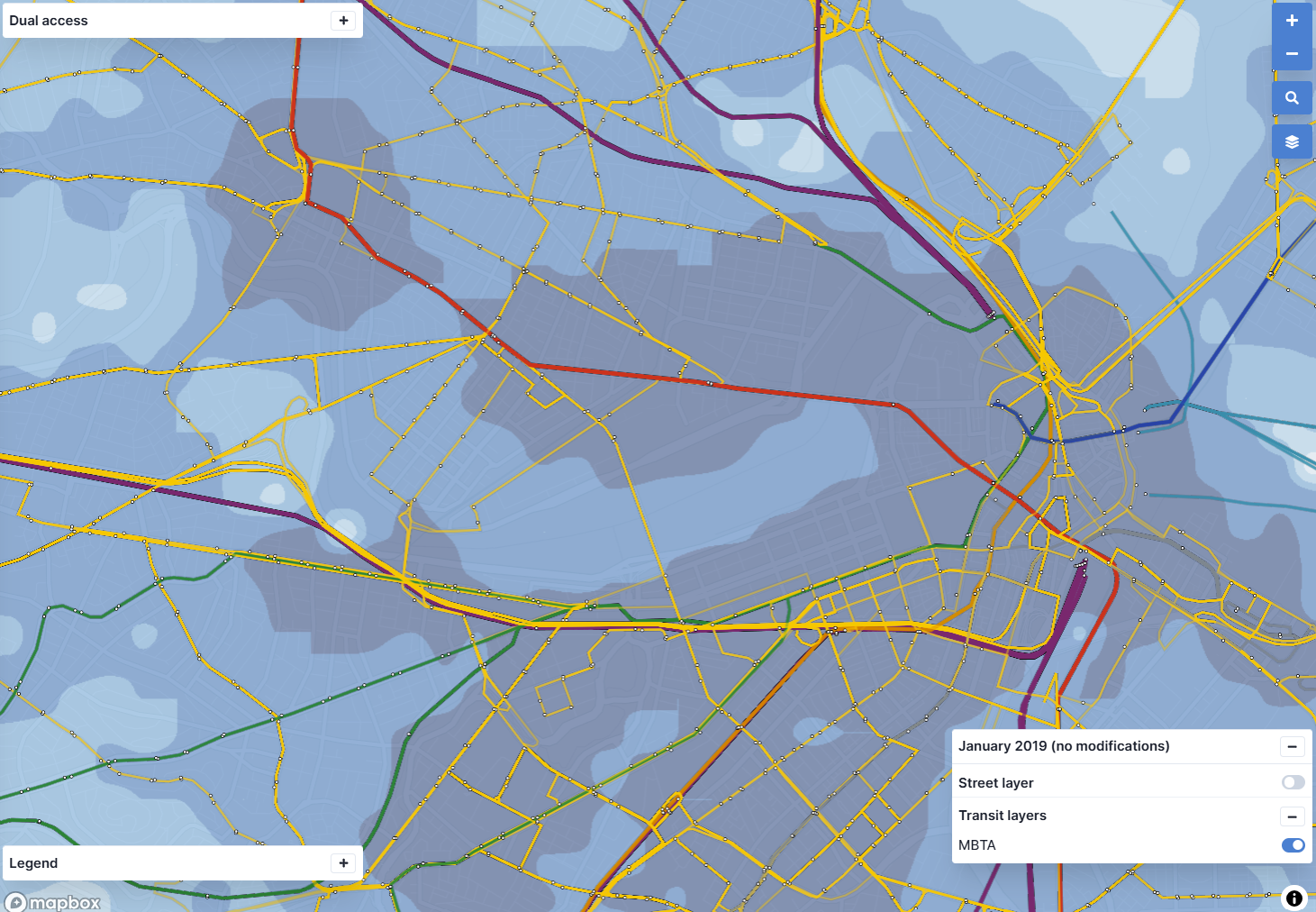

Displaying regional analysis results with the baseline network
Displaying regional analysis results with the baseline network
Displaying regional analysis results with the baseline network

The latest user interface and R5 release (v7.6) from the Conveyal team include:

  • New ways of representing and importing on-demand services
  • Improved transit alignment editing. When editing dwell times and speeds, associated stops/segments are highlighted more clearly on the map. And segment-specific speed or travel time values are now recorded more accurately; previous versions of Conveyal truncated any segment-specific travel times, which may have led transit travel times to be lower than intended.
  • Options to display the baseline network on maps of regional analysis results
  • More resilient regional analysis progress, with regular checks for unexpected shutdown of cloud workers
  • GeoJSON download of additional modification types
  • Additional detail in transit path CSV outputs
  • Updated LODES job and workforce data for regions in the United States

Setting custom breaks for the regional analysis map
Setting custom breaks for the regional analysis map
Setting custom breaks for the regional analysis map

The latest version of Conveyal (including v7.5 of the R5 routing engine):

  • Accelerates map display for completed regional analysis results (#986) and enables custom breaks for color bins
  • Adds the ability to download a combined .zip file of all destination layer, threshold, and travel time percentile combinations for a regional analysis
  • Uses requested walking speed (rather than a hard-coded default) when linking origin and destination points to the street network
  • Improves handling of origins and destinations linked to the same network edge (#980). This change may result in lower accessibility results compared to past versions of R5, especially near long network edges and when using low travel time cutoffs or decay functions.
  • Limits application of custom elevation data to walk and bike modes, not car (#972)
  • Enables new options for sidewalk restrictions, such as prohibiting bicycles or requiring step-free paths (#976).
  • Includes preliminary support for GTFS transfers.txt files

Inspecting freeform origins
Inspecting freeform origins
Inspecting freeform origins

The latest Conveyal routing engine is v7.4. With the latest user interface, this version:

  • Displays interactive freeform origins on the spatial dataset map
  • Enables dual access (time required to reach threshold number of opportunities) for grid origins
  • Improves legibility of regional analysis result maps
  • Updates LODES job and workforce data for regions in the United States
